In the rapidly evolving field of electrical engineering, insulated wires play a pivotal role in ensuring the safety and efficiency of electrical systems. Understanding the purpose and applications of insulated wires is essential for professionals and enthusiasts alike. This article delves into the intricacies of insulated wires, exploring their composition, types, and significance in modern electrical applications. By examining the materials used in electrical wire insulation, we can gain a comprehensive understanding of their functionality and importance.

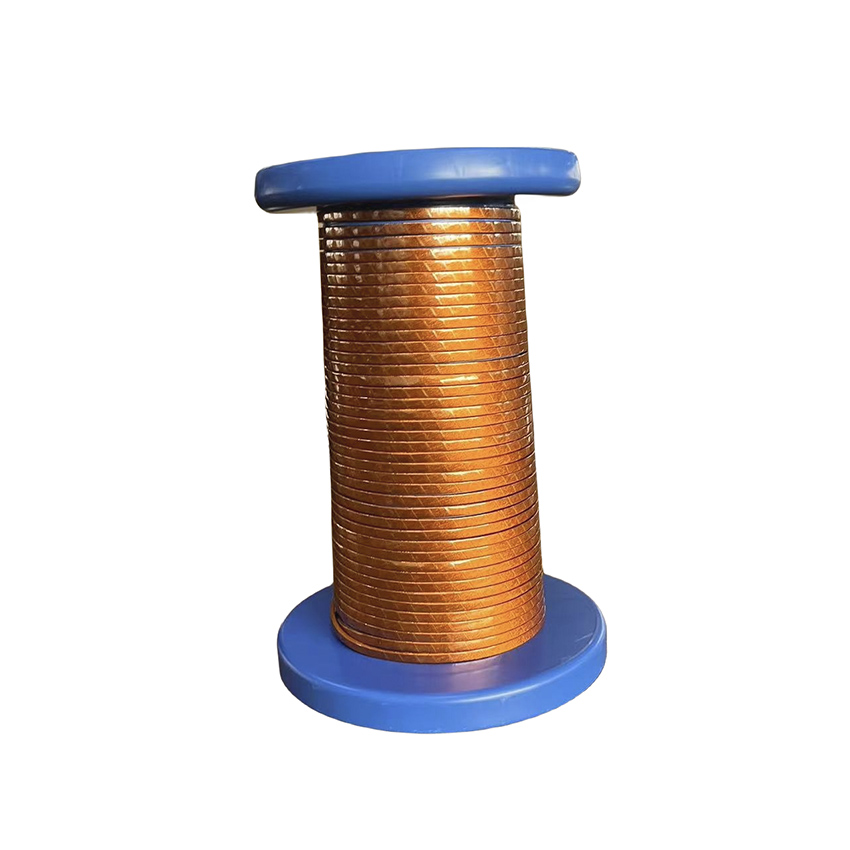

Insulated wires are electrical conductors coated with a non-conductive material to prevent unwanted current flow and protect against electric shocks. The primary function of insulating materials is to ensure that electrical currents flow along the intended paths without leakage or interference with other conductive elements. This insulation is crucial in maintaining the integrity and safety of electrical circuits, especially in complex systems where multiple wires run in close proximity.
The evolution of wire insulation has been marked by significant advancements since the advent of electricity. Early electrical systems relied on bare conductors, which posed severe risks of short circuits and electrical fires. With the introduction of rubber and gutta-percha as insulating materials in the 19th century, safety standards improved dramatically. The 20th century saw the development of synthetic polymers, providing superior insulating properties and greater durability. These advancements have enabled the widespread and safe use of electricity in residential, commercial, and industrial settings.
Wire insulation can be made from a variety of materials, each offering distinct properties suited to different applications. Common insulating materials include:
Polyvinyl Chloride (PVC): Widely used due to its flexibility and cost-effectiveness, PVC is suitable for a range of voltages and is resistant to chemicals and moisture.
Rubber: Natural or synthetic rubber provides excellent flexibility and is ideal for applications requiring movement, such as in appliances and machinery.
Polytetrafluoroethylene (PTFE): Known as Teflon, PTFE offers high-temperature resistance and is used in harsh environments.
Cross-linked Polyethylene (XLPE): Provides superior heat resistance and is commonly used in high-voltage applications.
Polyethylene (PE): Offering good electrical properties, PE is used in telecommunications and high-frequency applications.
The choice of insulating material depends on factors such as operating temperature, voltage rating, environmental conditions, and specific industry requirements. Understanding what wire insulation is made of is essential for selecting the appropriate wire for a given application.
Technological advancements have led to the development of new insulating materials to meet the demands of specialized applications. Materials such as polyimide (Kapton), silicone rubber, and fluorinated ethylene propylene (FEP) offer unique properties like extreme temperature tolerance, chemical resistance, and low dielectric constants. These materials are pivotal in aerospace, medical devices, and high-frequency electronics, where standard insulation may not suffice.
Wire insulation types are often categorized based on their application environment and performance requirements. Some common types include:
Thermoplastic Insulation: This category includes materials like PVC and PE, which soften when heated and harden upon cooling. They are suitable for general-purpose wiring.
Thermosetting Insulation: Materials like XLPE do not melt when heated, providing stability at higher temperatures, ideal for high-voltage and industrial applications.
High-Temperature Insulation: Insulations made from materials like PTFE or silicone are designed to withstand extreme temperatures and are used in aerospace and automotive industries.
Plenum Rated Insulation: These wires use low-smoke, flame-retardant materials suitable for use in building air spaces.
Understanding the different wire insulation types helps engineers and technicians select wires that meet specific safety standards and functional requirements.
In high-frequency applications, such as RF communication and signal transmission, the insulation material can significantly impact performance. Materials with low dielectric constants and minimal signal attenuation are preferred. For instance, PTFE and FEP are commonly used in coaxial cables and high-speed data transmission due to their excellent electrical properties.
Insulated wires are critical for preventing electrical hazards. The insulation provides a protective barrier that reduces the risk of electric shock, short circuits, and electrical fires. According to the National Fire Protection Association (NFPA), faulty wiring and electrical equipment account for a significant percentage of residential fires. Proper insulation mitigates these risks by containing the electrical current within the conductor.
In communication and control systems, insulation helps prevent electromagnetic interference (EMI) between adjacent wires. This is crucial in maintaining signal integrity, especially in densely packed circuits or high-speed data transmission. Insulating materials with specific dielectric properties can minimize capacitive coupling and signal loss.
Insulation protects wires from environmental factors such as moisture, chemicals, and temperature extremes. In industrial settings, wires may be exposed to harsh conditions that can degrade conductors. Insulation materials are selected based on their resistance to these factors, ensuring longevity and reliability of the electrical system.
In homes and commercial buildings, insulated wires are used extensively in electrical installations, providing power to outlets, lighting, and appliances. The insulation ensures safety and compliance with building codes. For example, non-metallic sheathed cables (NM cables) use PVC insulation and are standard in residential wiring due to their ease of installation and cost-effectiveness.
Modern vehicles contain complex electrical systems that rely on insulated wires for functionality and safety. High-temperature resistant insulation materials are used under the hood to withstand engine heat. Additionally, in electric and hybrid vehicles, specialized insulation is essential for high-voltage battery systems to ensure user safety and system reliability.
In industrial environments, machinery and equipment require robust wiring solutions. Insulated wires used here must endure mechanical stress, vibrations, and exposure to oils and chemicals. For instance, in automation systems, flexible and durable insulation is necessary to maintain performance and reduce downtime due to wiring failures.
Aerospace applications demand insulation materials that can withstand extreme temperatures, pressure changes, and radiation. Lightweight and high-performance insulations like polyimide are utilized to meet these stringent requirements. Reliability in these systems is paramount, as electrical failures can have catastrophic consequences.
Medical equipment often requires insulated wires that meet strict biocompatibility and sterilization standards. Materials like silicone rubber offer flexibility and can withstand repeated sterilization cycles. Insulation in medical devices ensures patient safety by preventing electrical leakage and maintaining device integrity.
Recent developments in nanotechnology have introduced insulating materials with enhanced properties. Nano-additives can improve thermal stability, mechanical strength, and electrical resistance. These advancements allow for thinner insulation layers without compromising performance, leading to more compact and efficient electrical components.
With increasing environmental concerns, the development of eco-friendly insulating materials has gained momentum. Biodegradable and recyclable insulation options are being explored to reduce the environmental impact. For example, thermoplastic elastomers (TPE) offer similar properties to traditional plastics but with improved recyclability.
Over time, insulating materials can degrade due to factors like thermal stress, UV exposure, mechanical abrasion, and chemical contamination. This degradation can lead to failures such as shorts or open circuits. Regular inspection and maintenance are essential to identify and address insulation deterioration before it results in system failures.
Electrical wires and their insulation must meet various international and local standards, such as those set by the International Electrotechnical Commission (IEC) or the National Electrical Code (NEC). Compliance ensures safety, interoperability, and reliability. Manufacturers must stay abreast of regulatory changes to ensure their products meet the necessary requirements.
Choosing the appropriate insulated wire involves considering factors such as:
Voltage Rating: Ensuring the insulation can handle the system's voltage requirements without breakdown.
Temperature Range: Selecting materials that can operate safely within the expected temperature extremes.
Environmental Conditions: Accounting for exposure to moisture, chemicals, UV light, and mechanical wear.
Flexibility: Depending on whether the wire needs to be flexible for movement or rigid for fixed installations.
Signal Integrity: For data and communication applications, considering the dielectric properties of the insulation.
Given the complexities involved, it's advisable to consult with electrical professionals or manufacturers when selecting wires for specialized applications. Companies like Yuseng Electronics offer expertise in providing tailored solutions that meet specific industry demands.
The advent of smart materials is paving the way for insulation that can adapt to environmental changes or self-heal after damage. Research is being conducted into materials that can change their insulating properties in response to temperature fluctuations or stress, enhancing the reliability of electrical systems.
As the Internet of Things (IoT) expands, the demand for insulated wires that support data transmission and connectivity increases. Insulation materials that minimize signal loss and interference are crucial for integrating sensors and devices in smart homes, industrial automation, and wearable technology.
Insulated wires are fundamental components in virtually all electrical systems, serving the crucial purpose of ensuring safety, functionality, and efficiency. By understanding the materials and types of insulation available, as well as the considerations for selecting the right wire, professionals can design and maintain systems that meet the highest standards of performance and reliability. As technology advances, the role of insulated wires will continue to evolve, meeting the challenges of emerging industries and applications.
For those seeking to enhance their knowledge of insulating techniques, understanding how to properly insulate wires is essential. Staying informed about the latest developments in insulation materials and technologies will ensure optimal performance and safety in all electrical endeavors.
