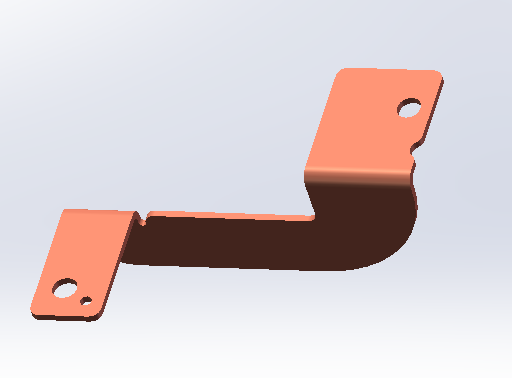

Customized Busbar Product Introduction
At Suzhou Yusheng Electronics, we not only offer standard products but are also dedicated to providing customized non-standard product solutions. Our non-standard products have the following advantages:
Customized Design: We tailor products to meet the specific needs of our customers, with flexibility in size, material, shape, and function to ensure perfect alignment with project requirements.
Flexible Production Model: With adaptable production lines and advanced technology, we can quickly respond to special requests, from small-scale pilot runs to large-scale mass production, ensuring efficient manufacturing and fast delivery.
Quality Assurance: All non-standard products are produced in accordance with strict quality standards and are certified by various organizations (such as UL, VDE, ISO, etc.), ensuring safety and reliability in all application scenarios.
Technical Support and Collaboration: Our R&D team works closely with customers throughout the entire process, offering technical support and helping optimize design solutions to meet and exceed customer expectations while enhancing product performance.
Cost Optimization: Through our customized services, customers not only receive products tailored to their specific needs but also benefit from cost optimization during the design and production process, helping reduce overall project costs.
Technical Requirements:
The material must meet the requirements of the NES 0301 2014-N standard and comply with GB/T 19515-2015 for road vehicle reusability and recyclability calculation methods.
The material resistivity must be 0.01774Ω·mm²/m (at 20℃).
Operating Temperature: -40℃ to +85℃.
Storage Temperature: -40℃ to +125℃.
The copper busbar must be straightened and leveled. After shearing, drilling, and punching, burrs must be removed. The surface of the busbar must be flat with no bumps, cracks, or perforations.
The copper busbar surface must be nickel-plated with a total plating thickness of ≥2μm. The plating must comply with GB/T 12599-2002, "Technical Specification and Test Methods for Tin Electroplated Coatings on Metal."
Salt Spray Test: Refer to GB/T 2423.17-2008 for environmental testing of electrical and electronic products, and GB/T 6461-2002 for rating specimens after corrosion tests on metallic and other inorganic coatings on metal substrates. Conduct a 96-hour neutral salt spray (NSS) test. The parts must meet the rating standards for specimens after corrosion testing: Protection Rating (Appearance Rating) = 7/-. The product surface must not show deformation, discoloration, loss of gloss, chalking, cracking, or other surface damage. Refer to GB/T 28046-2011 for environmental conditions and testing of electrical and electronic equipment in road vehicles, ensuring that the product's functional status meets Class A functional requirements: during and after the test, all product functions must meet design specifications.
Unspecified Dimensions: Refer to the 3D model.
Insulation Tubing Material: PVC, with a thickness of 1-1.5mm. Flame retardant rating: UL94 V0.
Insulation Withstand Voltage Rating: Greater than 2500VAC for 60 seconds without breakdown. Testing points should refer to product drawings.
Insulation Tubing Color: Orange, color code RAL2003 or PATONE Orange 021C.
Insulation Tubing Area: Refer to product drawings. For unspecified boundary dimensions, tolerance is 0mm/-2mm.
Insulation Tubing Forming: The tubing must be molded or heat-shrunk, with uniform shrinkage. There must be no bulging, wrinkling, or cracking of the sheath at bent areas.
Unspecified Tolerances for Dimensions, Angles, and Radii: Refer to GB/T 15055-2007 for M-level tolerance limits for stamped parts.
If you have specific non-standard product requirements, please contact us. We are committed to providing personalized solutions to ensure the success of your project.
