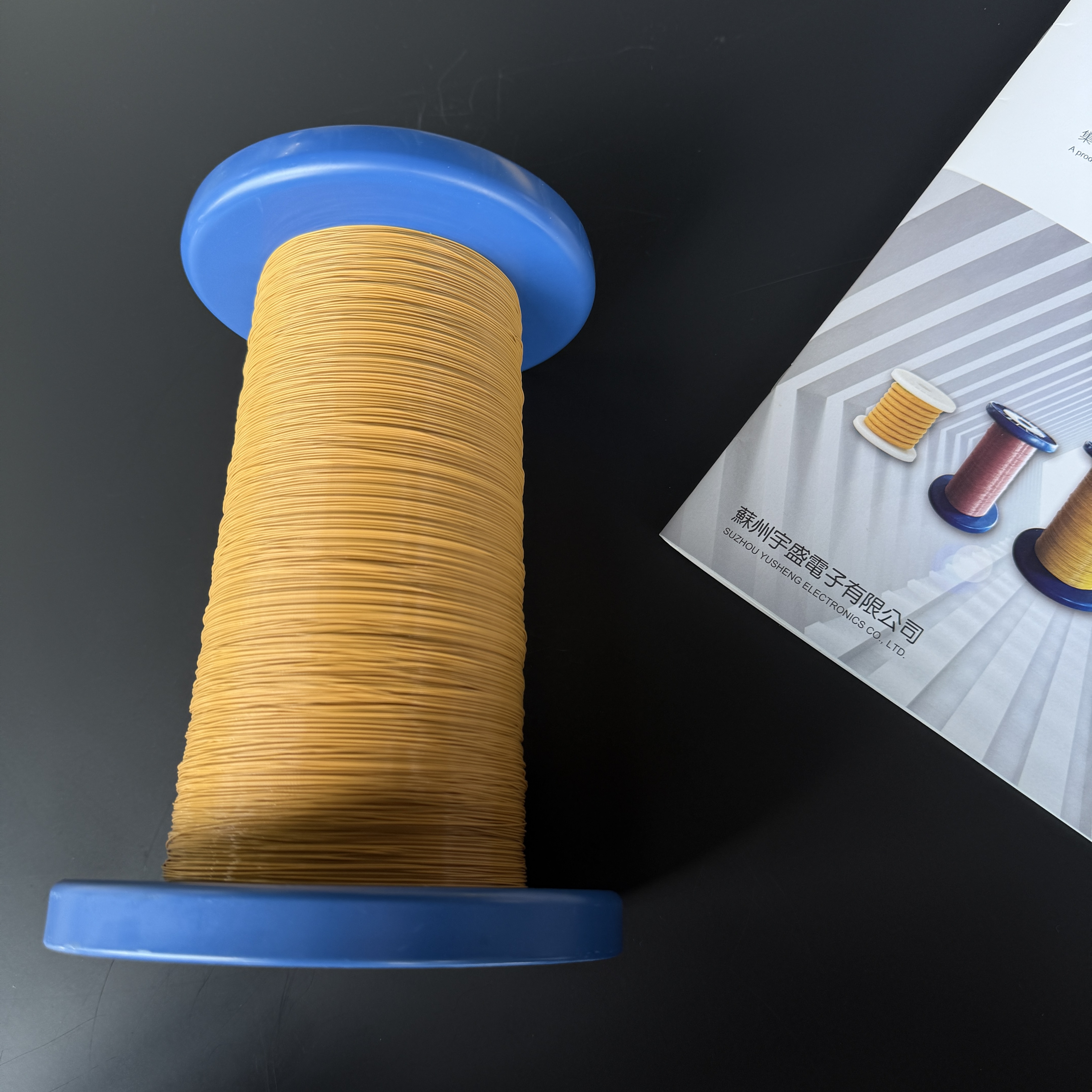

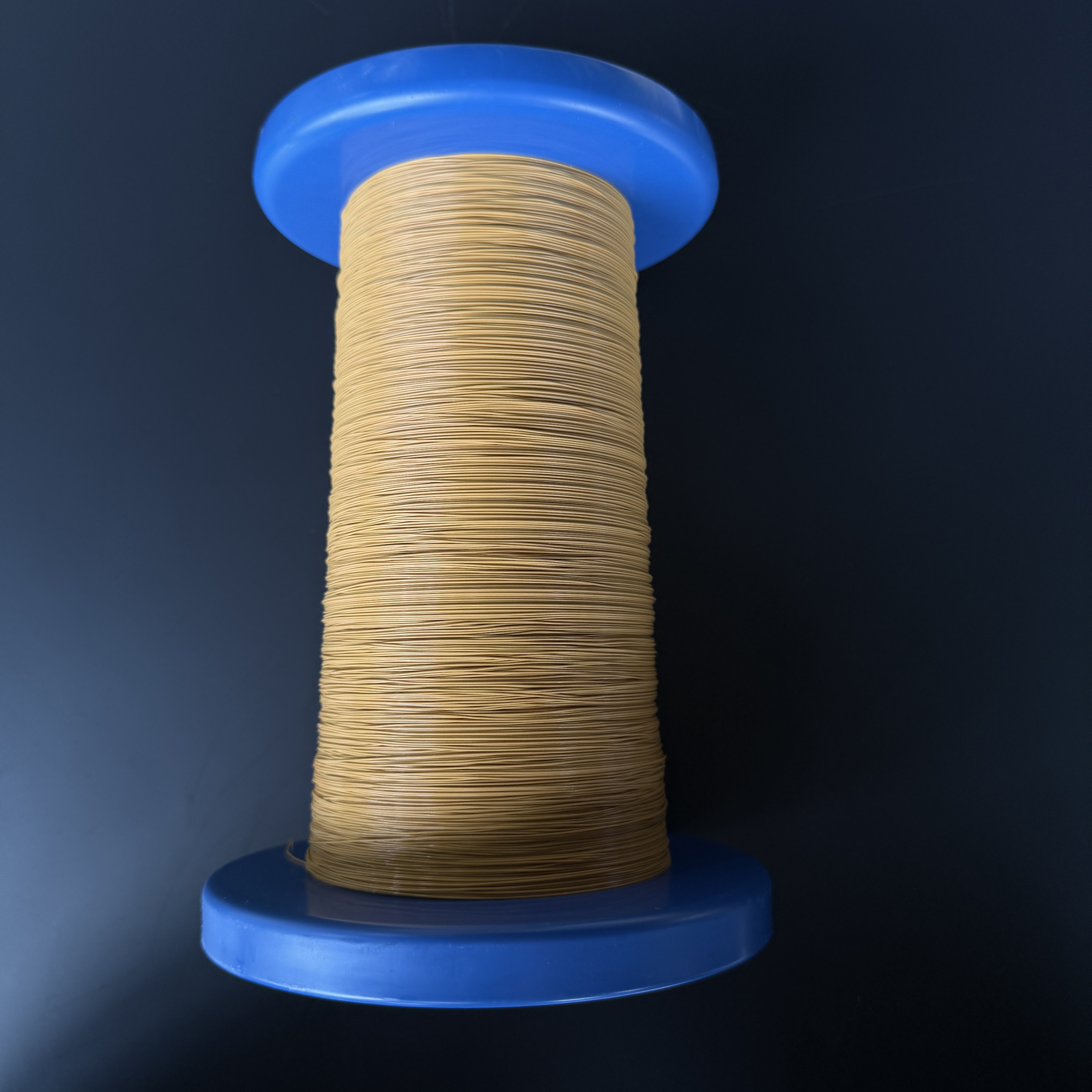

The 0.3mm Teflon Insulated Wire (FLW-B(EC)) is a high-quality electrical wire specifically designed for extreme conditions where reliability and durability are critical. Featuring a 0.3mm single enamelled conductor, the wire is coated with three layers of ETFE (Ethylene Tetrafluoroethylene) insulation, ensuring optimal electrical protection.
This wire is designed to perform in high-voltage applications, withstanding up to AC 6KV for 60 seconds without bn, ensuring the safety and longevity of your electrical systems. The wire's advanced insulation system also provides enhanced dielectric properties, which makes it perfect for high-frequency and high-power applications.
High-Voltage Resistance: Withstanding AC 6KV for 60 seconds ensures that the wire can handle demanding high-voltage electrical applications.
Reliable and Safe: Meets UL, VDE, and IEC standards to provide peace of mind in terms of electrical safety.
| Feature | Specification |
| Wire Category | FLW-B(EC) |
| Conductor Strand | 0.3mm Single Conductor |
| Conductor | Enamelled Copper Wire |
| Insulation Layers | Three |
| Insulation Material | ETFE (Ethylene Tetrafluoroethylene) |
| Temperature Resistance | Class B (up to 180°C) |
| Withstand Voltage | AC 6KV for 60 seconds without breakdown |
| Safety Certifications | UL2353, UL60950, UL1446, IEC/EN62368 |
| Color | Yellow |
Q: What makes this wire suitable for electrical applications?
A: The wire's Teflon (ETFE) coating provides excellent thermal, chemical, and electrical resistance, making it perfect for high-temperature and high-voltage electrical systems. Its superior insulation ensures safety and reliability in demanding applications.
Q: What is the maximum temperature the wire can withstand?
A: This wire has a Class B temperature resistance rating, meaning it can safely operate in environments with temperatures up to 180°C.
With a long history of successful collaborations with global clients, we have built a reputation for delivering reliable and high-performance products. Our customers trust us to provide solutions that enhance the safety and efficiency of their electrical systems, and we consistently meet or exceed their expectations.
