Litz wire has become increasingly significant in high-frequency applications due to its ability to reduce skin and proximity effects, which are detrimental at elevated frequencies. As industries push towards miniaturization and higher efficiency, understanding the insulation requirements for Litz wire becomes crucial. One common question arises: Do you need Teflon insulation around Litz wire? This inquiry delves into the necessity and benefits of using Teflon, a polytetrafluoroethylene (PTFE) material, as an insulating layer. The choice of insulation impacts not only the electrical properties but also the thermal stability and mechanical robustness of the wire. In this context, we explore the role of teflon insulated wire in enhancing the performance of Litz wire in various applications.
Litz wire, derived from the German word "Litzendraht", meaning woven wire, is constructed of multiple thin wire strands individually insulated and twisted or woven together. This unique construction minimizes the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz. These effects cause the current to concentrate on the surface of the conductor, increasing resistance and power losses. Litz wire's design ensures a uniform distribution of the current across the cross-section of the conductor, making it highly efficient for transformers, inductors, and other high-frequency applications.
At high frequencies, standard conductors suffer from increased AC resistance due to the skin effect. Litz wire effectively mitigates this by having each strand insulated, ensuring that the current divides equally among them. This results in lower resistance and higher efficiency in power transmission. Studies have shown that using Litz wire can reduce AC resistance by up to 70% compared to solid conductors at frequencies above 100 kHz.
The demand for Litz wire is growing in industries such as telecommunications, aerospace, and renewable energy. Its ability to handle high frequencies makes it ideal for wireless charging systems, high-frequency transformers, and inductors used in resonant circuits. For instance, in wireless charging pads for electric vehicles, Litz wire coils are essential for efficient energy transfer between the transmitter and receiver coils.
Insulation in Litz wire serves multiple purposes beyond merely preventing electrical shorts. It affects the thermal performance, mechanical flexibility, chemical resistance, and overall durability of the wire. The choice of insulation material can significantly impact the wire's suitability for specific applications.
Each strand within Litz wire must be individually insulated to ensure proper current distribution. This insulation prevents electrical contact between strands, which is vital for minimizing the skin and proximity effects. High-quality insulation maintains consistent dielectric properties under various operating conditions, ensuring reliable performance.
The insulation material's thermal properties influence the wire's ability to dissipate heat. Materials with high thermal conductivity can help in heat dissipation, reducing hotspots and enhancing the wire's lifespan. Conversely, insulation must also withstand the operational temperatures without degrading, which is where materials like Teflon excel.
Insulation provides mechanical protection against abrasion, vibration, and handling stresses. It also offers chemical resistance against oils, solvents, and other environmental contaminants. Selecting an insulation material that can withstand the operational environment is crucial for maintaining the integrity of the Litz wire over time.

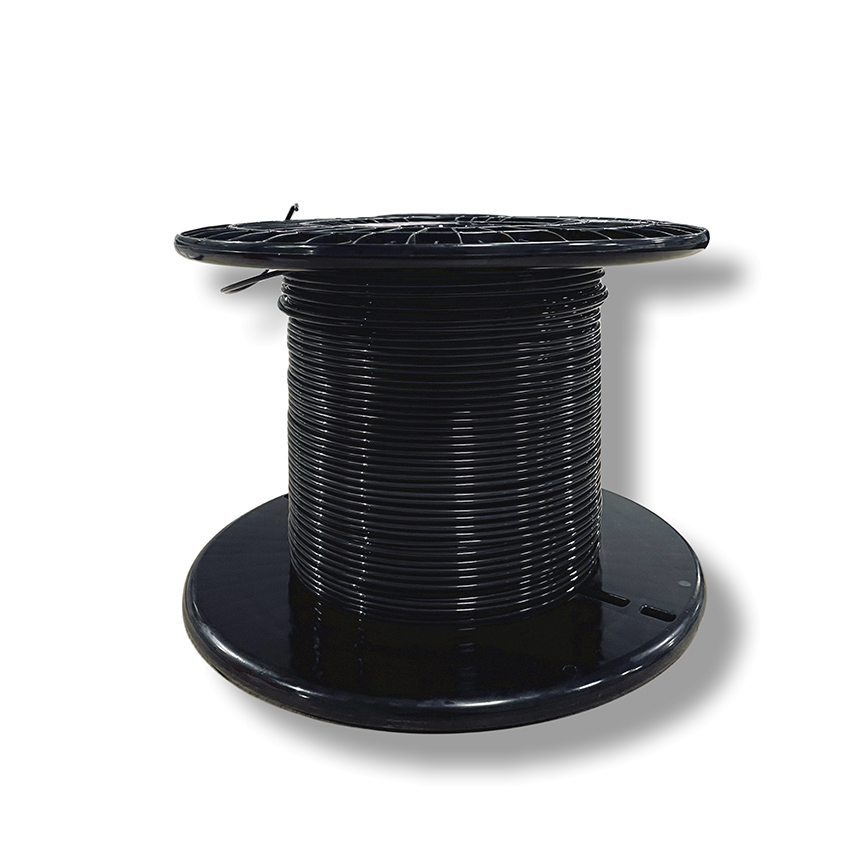

Teflon, or polytetrafluoroethylene (PTFE), is renowned for its exceptional electrical, thermal, and chemical properties. When used as an insulation material for Litz wire, it offers several advantages that enhance the wire's performance and durability.
Teflon insulation can withstand temperatures ranging from -200°C to +260°C. This wide operating temperature range makes it suitable for applications subjected to extreme thermal conditions. The thermal stability ensures that the insulation properties remain consistent, preventing breakdowns or losses due to temperature fluctuations.
With a high dielectric strength and low dielectric constant, Teflon provides excellent electrical insulation. Its low dissipation factor means that it can handle high-frequency signals with minimal energy loss. This property is particularly beneficial in applications like high-frequency transformers and RF circuits.
Teflon's inert nature makes it highly resistant to chemicals, oils, and solvents. This resistance ensures that the insulation remains intact in harsh chemical environments, making it ideal for industrial applications where exposure to corrosive substances is common.
The mechanical strength of Teflon insulation protects the wire from abrasion and mechanical stresses. Its flexibility allows for easy handling and installation without compromising the integrity of the insulation. This durability extends the service life of the Litz wire in various applications.
While Teflon offers numerous benefits, it is essential to compare it with other common insulation materials to determine its relative advantages and potential drawbacks.
Polyurethane and polyester are commonly used insulation materials for Litz wire due to their good electrical properties and cost-effectiveness. However, they have lower thermal stability compared to Teflon, typically up to 155°C. They may not withstand harsh chemical environments or high-temperature applications as effectively as Teflon.
Polyimide insulation offers excellent thermal stability, up to 260°C, similar to Teflon. It also provides good electrical properties but is less flexible and more susceptible to moisture absorption. Polyimide can be more brittle, which may lead to handling difficulties compared to the more robust Teflon insulation.
Silicone rubber insulation is known for its flexibility and thermal resistance up to 200°C. However, it has a higher dielectric constant and dissipation factor than Teflon, potentially leading to greater signal loss at high frequencies. Silicone rubber may also be less resistant to certain chemicals compared to Teflon.
While Teflon insulation offers many advantages, engineers and designers must consider several factors when deciding whether to use Teflon insulated Litz wire in their applications.
Teflon is generally more expensive than other insulation materials. The increased cost can impact the overall budget of a project, especially in high-volume applications. It's essential to weigh the benefits of Teflon's superior properties against the cost to determine if it's a justified investment.
For applications operating in extreme temperatures, harsh chemical environments, or requiring high-frequency performance, Teflon insulated wire may be necessary. In less demanding applications, alternative materials might suffice, providing cost savings without compromising performance.
Teflon insulation tends to be thicker than other materials, which can affect the overall diameter of the Litz wire. In applications where space constraints are critical, this increased size might pose challenges. Designers need to account for the physical dimensions when integrating the wire into their systems.
Practical applications underline the importance of selecting the appropriate insulation for Litz wire. Below are case studies where Teflon insulation proved beneficial.
In wireless charging pads for electric vehicles, coils made of Litz wire are essential for efficient energy transfer. A manufacturer faced issues with overheating and insulation breakdown using standard insulated wire. Switching to Teflon insulated Litz wire solved the overheating problem due to Teflon's superior thermal properties, improving the charging system's reliability.
An aerospace company required wiring that could withstand extreme temperature variations and exposure to jet fuel and hydraulic fluids. Teflon insulated Litz wire provided the necessary thermal stability and chemical resistance. The wire maintained performance under rigorous conditions, contributing to the safety and efficiency of the aircraft's electrical systems.
While Teflon offers many benefits, there are scenarios where alternative insulation materials may be more appropriate or cost-effective.
For applications that do not require high thermal resistance or chemical inertness, polyethylene and PVC can serve as suitable insulation materials. They are cost-effective and provide adequate electrical insulation for low to medium frequency applications.
In certain high-Q inductor applications, silk or cotton insulation is used due to their low dielectric constants. However, they lack thermal resistance and are susceptible to moisture and chemical exposure, limiting their use to specific controlled environments.
Advancements in material science continue to influence the development of insulation materials for Litz wire. Emerging technologies focus on enhancing performance while addressing cost and environmental concerns.
Research into nanocomposite insulation materials aims to provide superior electrical and thermal properties. These materials incorporate nanoparticles to enhance dielectric strength, thermal conductivity, and mechanical properties. They hold the promise of outperforming traditional materials like Teflon in certain aspects.
Environmental considerations are driving the development of biodegradable and recyclable insulation materials. While Teflon is durable, it is not biodegradable. Future materials may offer similar performance with reduced environmental impact, aligning with global sustainability goals.
Deciding whether you need Teflon insulation around Litz wire hinges on the specific requirements of your application. Teflon insulated wire offers exceptional thermal stability, electrical properties, and chemical resistance, making it ideal for demanding environments and high-frequency applications. However, considerations such as cost, physical dimensions, and necessity must be weighed. Alternative insulation materials may suffice for less rigorous applications, providing cost benefits without significant performance trade-offs. Understanding the role of insulation in Litz wire is essential for optimizing performance, efficiency, and longevity in electronic systems. As technology advances, keeping abreast of new materials and trends will ensure the best insulation choices are made for future applications.
For applications requiring high-performance insulation, considering teflon insulated wire could significantly enhance system reliability and efficiency.
