| Quantity: | |
|---|---|
| Parameter | Specification |
|---|---|
| Materials | Aluminum: 1060-0 temper, Pure Copper: T2-Y2 temper |
| Copper Material | Must meet GB/T5231-2012 |
| Aluminum Material | Must meet GB/T3190-2020 |
| Mechanical Properties | Copper & copper alloy coils/sheets: GB/T2059-2017; Aluminum alloys: GB/T3880.2-2012 |
| Material Thickness | Aluminum: 1.5±0.1mm, Copper: 1.5±0.1mm |
| Surface Treatment | Dark Nickel Plating (5-10 μm thickness) |
| Electrical Properties | Resistivity must meet GB/T5585.1-2018 and GB/T5585.2-2018 |
| Flame Retardancy | GB/T2408 V-0 or UL94 V-0 level for vertical combustion |
| Hazardous Substance Compliance | Complies with GB/T30512 or RoHS standards for restricted automotive substances |
| Appearance | Natural Color |
| Certification | UL, VDE, ISO |
| Performance Testing | DVP test list |
| Edge Collapse Tolerance | Edge collapse is allowed due to blanking |
| Welding and Bending | No cracks; 75% weld integrity after tear test; Weld reinforcement height ≤ 0.2mm |
Superior Electrical Conductivity: The combination of copper and aluminum ensures optimal electrical flow, making this busbar ideal for high-conductivity applications such as solar power and electric vehicle systems.
Corrosion Resistance: The nickel-plated copper surface treatment ensures long-lasting protection against environmental factors like humidity, ensuring durability in harsh conditions.
High Durability: The busbar is built to withstand mechanical stress, extreme temperatures, and environmental factors, ensuring reliable performance in industrial electrical systems.
Customization Options: With flexible design options, including size, material, and surface treatments, this copper-aluminum busbar can be customized to meet the specific demands of your application.
Cost Efficiency: Combining copper's conductivity and aluminum's lightweight properties offers a cost-effective solution for high-performance electrical connections, reducing long-term operational costs.
Power Distribution Systems: Essential for power modules and electrical systems requiring efficient, high-conductivity connections.
Renewable Energy Systems: Ideal for solar photovoltaic (PV) installations, where long-lasting electrical connections are crucial.
Electric Vehicles (EVs): Used in the power distribution systems of electric vehicles, ensuring optimal conductivity and power flow.
Industrial Electrical Equipment: Suitable for heavy-duty electrical applications, including factory automation and manufacturing equipment.
Consumer Electronics: Used in high-performance consumer electronics where reliable electrical connections are necessary for module integration.

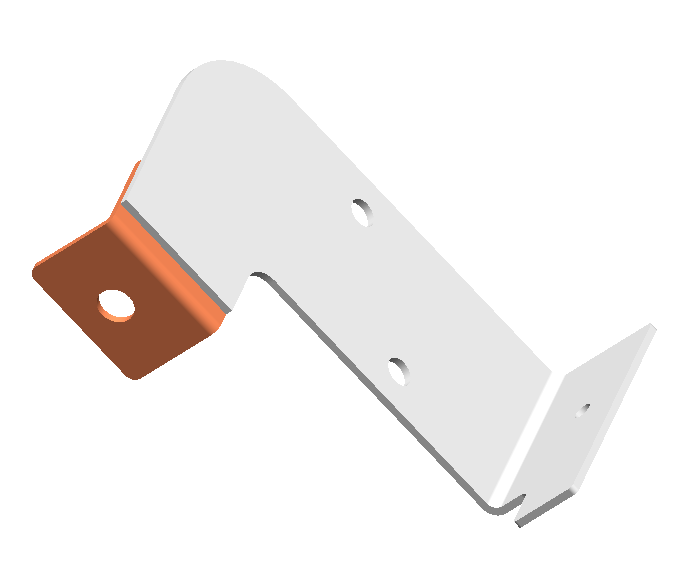

The Copper-Aluminum Composite Busbar offers an ideal combination of copper's electrical conductivity and aluminum's lightweight properties, providing a cost-effective solution for high-performance electrical systems while ensuring long-term durability and reliability.
It is widely used in power distribution, solar energy systems, electric vehicles, industrial electrical applications, and consumer electronics where safe, efficient, and durable electrical connections are critical.
Yes, the Copper-Aluminum Composite Busbar can be customized in terms of size, material, surface treatments, and performance testing to meet specific application requirements.
Our busbars are certified to meet UL, VDE, and ISO standards, ensuring they comply with global safety, quality, and performance regulations.
The Copper-Aluminum Composite Busbar undergoes rigorous performance testing according to the DVP test list, ensuring it meets electrical and mechanical standards for a variety of applications.
