| Quantity: | |
|---|---|
Self-bonding coils have a wide range of applications across various industries, including electronic transformers, where they facilitate efficient energy transfer and signal processing. They are also essential in high-frequency inductors, contributing to improved stability and reduced electromagnetic interference. Additionally, self-bonding coils are utilized in automotive relays and coils, ensuring reliable operation in harsh vehicle conditions. Furthermore, their compact size and lightweight nature make them ideal for consumer electronics, enhancing the performance of devices such as smartphones and smart home appliances.
Conductor Type: 4UEWF
Diameter of Single Conductor: 0.1 ± 0.005 mm
Appearance: The surface must be immaculate, free of discoloration, damage, copper leakage, scratches, contamination, cracks, oxidation, black spots, and foreign objects to ensure product quality.
Color: Yellow
Thickness of Insulating Layer: 0.1 ± 0.01 mm
Number of Loops: 14 turns

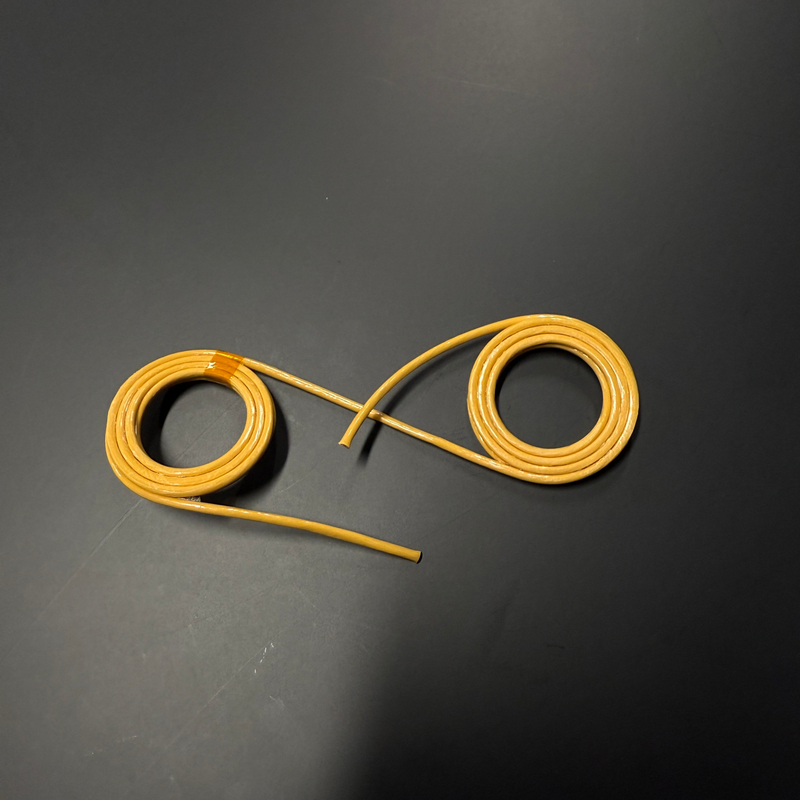

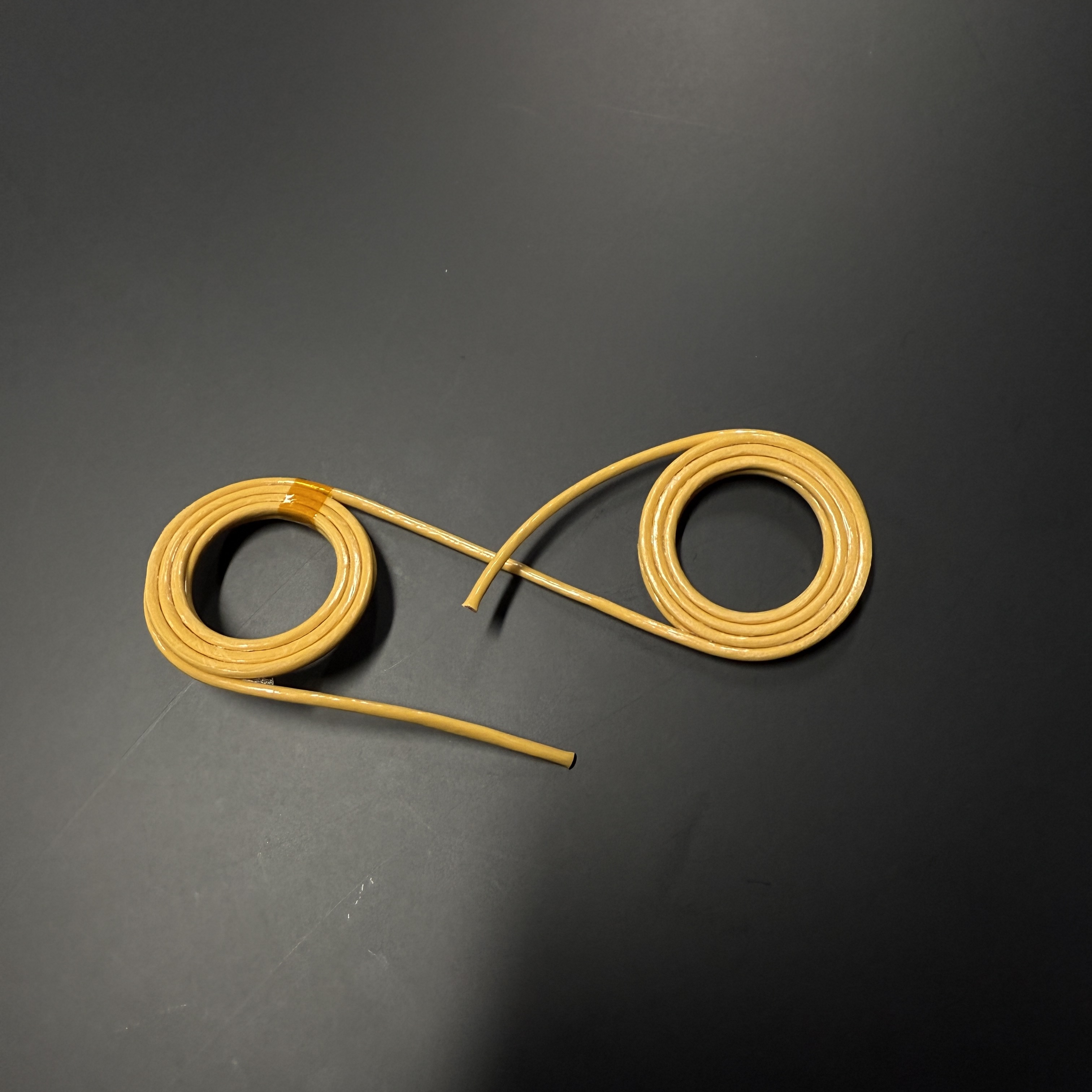

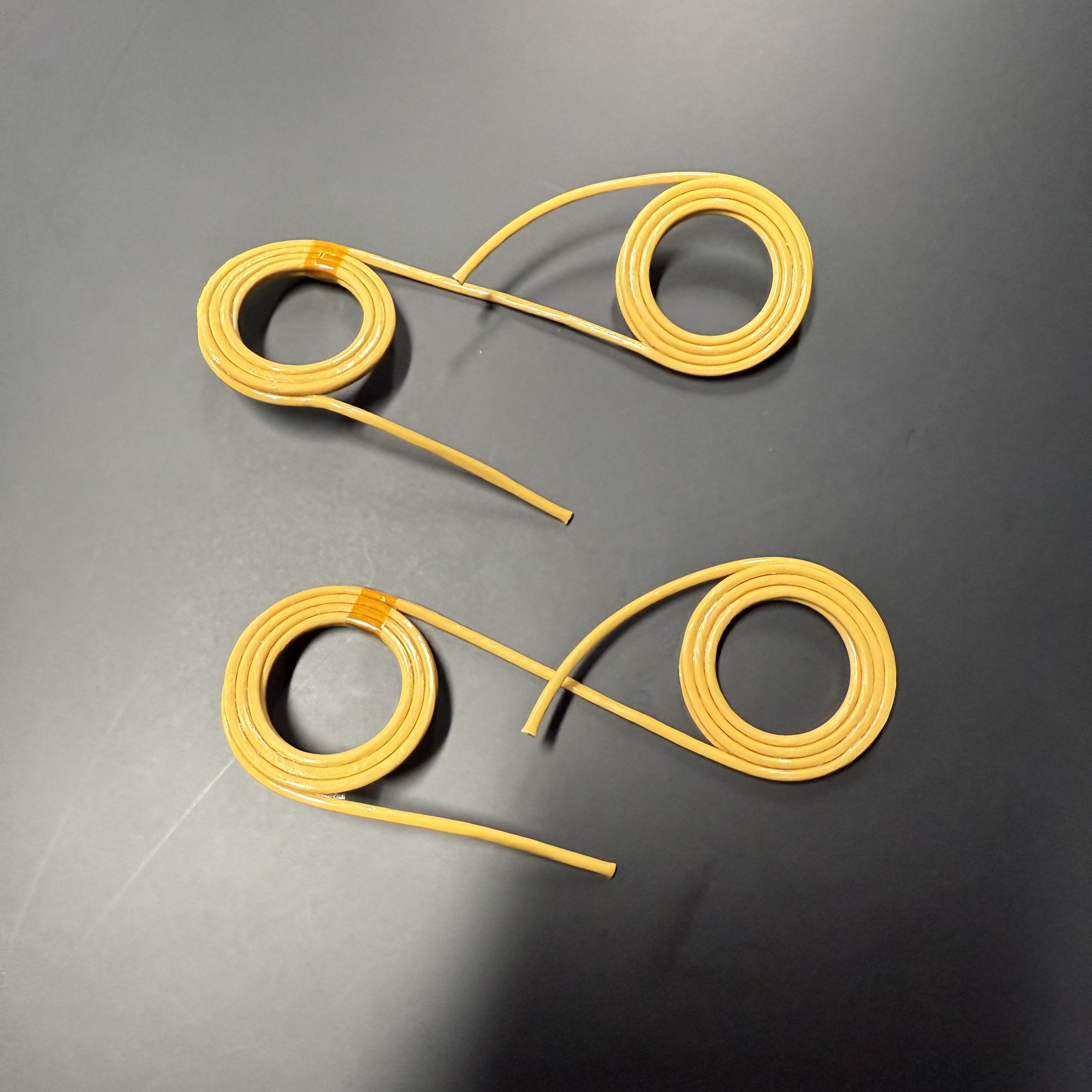

Coil Type: Dual Coil Connection for enhanced versatility
Inside Diameter of Coil: Minimum 21 mm
Outside Diameter of Coil: Maximum 36 mm
Leave Line Length on Both Sides: 45-50 mm
